Among the product range of container swimming pools for sale, the 20ft swimming pool is the model with the highest number of inquiries and the strongest repeat purchase rate, and it is also the most exported pool size by YG Company. Its external dimensions strictly follow the 20-foot international standard container specifications, so it can be loaded directly into standard container ships and shipped to any port worldwide, with the lowest logistics cost among all sizes. For overseas customers purchasing a prefabricated pool for the first time, this small container pool is both an ideal choice to test the market and can meet core needs such as daily family swimming, children’s play, and leisure relaxation.
Container Swimming Pools for Sale Specifications
| Item | 20FT Container Pool | 30FT Container Pool | 40FT Container Pool |
| External Dimension | 5850 × 2200 × 1600 mm | 9000 × 2200 × 1600 mm | 11800 × 2200 × 1600 mm |
| Inner Pool Size | 4400 × 1900 × 1350 mm | 7550 × 1900 × 1350 mm | 10400 × 1900 × 1350 mm |
| Water Capacity | ≈10 m³ | ≈19 m³ | ≈24 m³ |
| Swimming Capacity | 3-4 persons | 5-6 persons | 6-8 persons |
| Structure Type | Steel Frame | Steel Frame | Steel Frame |
| Main Material | Q235B Steel Structure | Q235B Steel Structure | Q235B Steel Structure |
| Liner System | PVC Pool Liner | PVC Pool Liner | PVC Pool Liner |
| Anti-Corrosion Treatment | Sandblasting + Jotun Primer | Sandblasting + Jotun Primer | Sandblasting + Jotun Primer |
| Exterior Cladding | Corrugated Steel Plate Coated with Marine-Grade Anti-Corrosion Paint | Corrugated Steel Plate Coated with Marine-Grade Anti-Corrosion Paint | Corrugated Steel Plate Coated with Marine-Grade Anti-Corrosion Paint |
| Filtration System | Quartz Sand Filter | Quartz Sand Filter | Quartz Sand Filter |
| Circulation Pump | 1.0~1.5HP | 1.0~1.5HP | 2.0~3.0HP |
| Underwater LED Light | 2 Pcs Standard | 3 Pcs Standard | 4 Pcs Standard |
| Glass Viewing Window | 1 Pc 2400×900mm (Standard) | 1 Pc 2400×900mm (Standard) | 2 Pcs 2400×900mm (Standard) |
| Skimmer | Standard | Standard | Standard |
| Return Inlet | Standard | Standard | Standard |
| Drainage System | Standard | Standard | Standard |
| Electric Control Box | Standard | Standard | Standard |
| Voltage | 220V | 220V | 220V |
| Staircase | Stainless Steel Stair | Stainless Steel Stair | Stainless Steel Stair |
| Access Door | Standard | Standard | Standard |
Standard configuration includes: circulation pump, sand filter system, underwater LED lights ×2, tempered glass viewing window, stainless steel staircase, WPC exterior panels, and electrical control system.

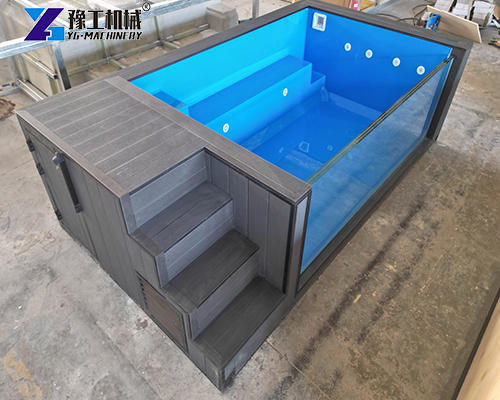

20ft Swimming Pool Actual Size Details
- External dimensions: 5850mm (length) × 2200mm (width) × 1600mm (height), total footprint about 12.9 square meters, roughly the floor area of a small garage. It can be flexibly placed in a courtyard, terrace, or rooftop platform of a commercial project.
- Internal water dimensions: 4400mm (length) × 1900mm (width) × 1350mm (depth), effective water depth about 1.35 meters, can accommodate 3-4 people at the same time, meeting daily family swimming, children’s play, and relaxation needs.
- Water capacity and weight: water capacity about 10 cubic meters (10,000 liters), empty pool weight about 2.2 tons, total weight when fully loaded about 10-13 tons. The foundation design must be constructed according to this load-bearing standard.
- Transport compatibility: external dimensions comply with international 20-foot standard container specifications, can be shipped to major global ports via standard container ships, and one 20GP can load the whole unit.
20ft Swimming Pool Installation: What to Prepare Before Delivery
- Foundation preparation: three recommended foundation options—reinforced concrete foundation, steel structure platform, or compacted gravel foundation. Key requirements: level error ≤5mm, stable foundation with no settlement risk, meeting the 10-13 ton full-load weight requirement.
- Power supply reservation: bring the power line to the pool installation site in advance. Standard voltage 220V/50Hz, with support for customization according to the destination country (USA 120V/240V/60Hz, Australia 240V/50Hz, etc.).
- Water supply and drainage piping: pre-install water inlet and drainage pipe connections, ensuring alignment with the pool equipment compartment.
- Hoisting conditions confirmation: confirm that a crane can reach the installation site, with no obstacles such as overhead power lines or low tree branches nearby.
- Installation timeline: hoisting and positioning take about 1 hour; water/electricity connection and system commissioning take about half a day to one day, then the pool is ready for filling and use.
Container Swimming Pool Cost: Key Factors Affecting Price
- Size specifications: in the container swimming pools for sale market, prices for the 20ft, 30ft, and 40ft models increase progressively. The 20ft, being the smallest and most economical to transport, is the entry-level first choice.
- Internal material upgrades: PVC film is the standard configuration; upgrading to fiberglass lining or 316 stainless steel lining adds cost, but corrosion resistance and service life are also improved accordingly.
- Equipment configuration options: optional heat pump heating system, automatic roller cover, counter-current swimming system, SPA massage system, salt chlorine disinfection system, etc. Each option affects the final container swimming pool cost figure.
- Shipping cost: the whole unit can be shipped by sea in a 20GP standard container. Freight costs depend on the distance to the destination port and current shipping rates. The 20ft model has the lowest logistics cost among the three sizes.
- Customization requirements: custom items such as exterior color, glass size, interior decoration, and corporate logo all affect the quotation. YG supports providing formal project-based quotations upon request.
FAQs About the 20ft Swimming Pool
Q: Will this small container pool rust?
No. The steel structure is protected by sandblasting, Jotun anti-rust primer, and topcoat in three layers. The internal PVC waterproof system completely isolates water from the steel structure, eliminating rust risk.
Q: Is the glass viewing window safe?
Yes. It uses laminated tempered glass, fully designed for long-term water pressure loads, with dual sealing via special structural adhesive and a mechanical fixing system. Under normal use, it will not break or leak.
Q: Can it maintain a constant temperature?
Yes. The optional air-source heat pump system saves 60%-80% energy compared to traditional electric heating, suitable for year-round commercial projects or family use in colder winter regions.
Q: Is water quality maintenance complicated?
The standard quartz sand filter system is easy to maintain and has low operating costs. An optional salt chlorine disinfection system reduces chemical use, making water softer and maintenance easier.
Q: Does it support smart control?
Optional WiFi control system, mobile APP remote control, and automatic water quality monitoring are available, suitable for commercial scenarios like resorts and homestays that need remote management.
Contact YG to Customize Your Pool Solution
YG Company provides R&D, production, and customization services for the full range of prefabricated pools, including 20ft swimming pools, in the 20ft/30ft/40ft series. We support comprehensive personalization in size, depth, exterior color, equipment configuration, and corporate logo. Our products have been exported to many countries and regions worldwide. Whether you are a private homeowner, a homestay operator, or a resort project developer, we offer one-stop services from model selection consultation to installation guidance. Welcome to contact YG for formal quotations and technical solutions.
